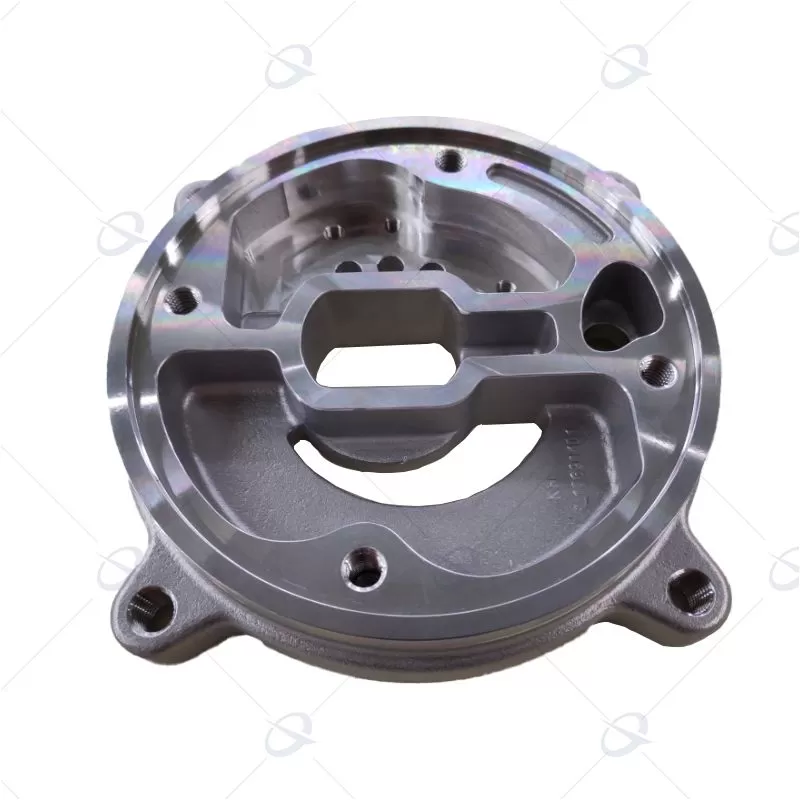

Pump and valve castings are critical components used in water treatment, chemical processing, oil and gas, power generation, marine systems, mining, HVAC, and many other industrial applications. Components such as pump housings, impellers, valve bodies, bonnets, covers, and bearing housings must withstand pressure, corrosion, vibration, temperature changes, and continuous fluid flow.
Because many of these components have complex internal cavities, varying wall thicknesses, flanges, sealing surfaces, and flow passages, producing a defect-free casting can be challenging.
Casting defects do not simply affect appearance. A small shrinkage cavity, crack, inclusion, or dimensional deviation can lead to leakage, premature wear, reduced pressure resistance, machining difficulties, or even component failure during service.
Understanding the most common defects in pump and valve castings, why they occur, and how they can be prevented is therefore essential for foundries, pump manufacturers, valve manufacturers, engineering companies, and industrial buyers.
Pump and valve components often operate under demanding conditions. Unlike many general-purpose cast parts, they may come into direct contact with pressurized fluids, corrosive media, abrasive particles, steam, chemicals, or seawater.
Important casting requirements therefore commonly include:
Good pressure integrity
Consistent wall thickness
Accurate flange and port dimensions
Reliable sealing surfaces
Stable mechanical properties
Good corrosion and wear resistance
Minimal internal porosity
Sufficient machining allowance
Smooth internal flow passages
Compliance with drawings and material specifications
A defect that appears minor before machining may become much more serious after material is removed.
For example, internal porosity located beneath a flange surface may only become visible during machining. Likewise, shrinkage defects around thick sections may affect pressure testing even when the exterior of the casting looks acceptable.
For this reason, defect prevention must begin at the casting design, pattern, molding, melting, pouring, heat treatment, and inspection stages, rather than relying only on final inspection.
Shrinkage is one of the most common defects encountered in industrial pump and valve castings.
As molten metal cools and solidifies, its volume decreases. If additional molten metal cannot feed the solidifying area properly, empty spaces can form inside the casting.
These defects may appear as:
Large shrinkage cavities
Small internal voids
Distributed shrinkage porosity
Spongy areas around heavy sections
Pump housings and valve bodies can be particularly vulnerable because they often contain transitions between thick flanges and thinner walls.
Typical causes include:
Poor riser design
Insufficient feeding of heavy sections
Improper solidification sequence
Excessive pouring temperature
Large differences in wall thickness
Inadequate use of chills
Poor gating and risering layout
Several measures can help.
Sharp transitions between very thick and thin sections should be avoided whenever possible. Gradual wall transitions help create a more predictable solidification pattern.
Risers should supply liquid metal to areas that solidify last. Their location, size, and feeding distance must therefore be matched to the geometry of the pump or valve casting.
Chills can accelerate solidification in selected areas and help control the solidification direction.
Excessively high pouring temperatures can increase solidification time and contribute to shrinkage problems.
For complex castings, simulation software can also be used during process development to predict hot spots and optimize gating and feeding systems before production begins.
Gas-related defects are another frequent concern in pump and valve castings.
Gas defects may appear as:
Round internal holes
Smooth-walled cavities
Surface pinholes
Clusters of small pores
Larger blowholes
For pressure-containing components, internal gas porosity can be particularly problematic because it may create leakage paths.
Gas porosity may result from:
Excessive moisture in molding sand
Gas generated from cores
Poor mold ventilation
Turbulent pouring
Contaminated charge materials
Excessive dissolved gases in molten metal
Incorrect binder or coating conditions
Foundries can reduce gas-related problems through several controls.
The moisture level and permeability of molding sand should be maintained consistently.
Cores must be adequately cured or dried before pouring.
This is especially important for pump casings and valve bodies with complex internal flow passages, where large or intricate cores may be required.
Adequate mold and core venting allows gases to escape during pouring.
A properly designed gating system helps molten metal enter the mold smoothly, reducing air entrainment.
Correct melting, refining, degassing, and ladle practices can further reduce gas-related defects.
Sand inclusions occur when particles of molding or core sand become trapped inside the casting.
They can create surface defects, internal discontinuities, or machining problems.
In pump and valve castings, sand inclusions may occur around:
Internal flow passages
Flanges
Valve chambers
Pump volutes
Core-supported cavities
If an inclusion is located near a sealing or machining surface, it may become exposed after machining.
Typical reasons include:
Weak molding sand
Core erosion
Poor mold coating
Excessive metal velocity
Improper gating design
Damaged molds or cores
Loose sand remaining inside the cavity
Prevention methods include:
Maintaining adequate mold and core strength
Applying appropriate refractory coatings
Cleaning molds before assembly
Controlling pouring velocity
Improving runner and ingate design
Ensuring cores are properly supported
The gating system should minimize direct metal impact on vulnerable mold or core surfaces.
Slag, oxide films, and other non-metallic inclusions can become trapped in molten metal during melting and pouring.
Non-metallic inclusions can interrupt the continuity of the metal structure and potentially reduce:
Mechanical strength
Fatigue resistance
Pressure integrity
Machinability
Surface quality
Inclusions located near pressure-bearing walls or machined sealing surfaces are particularly undesirable.
They may result from:
Poor melt cleanliness
Inadequate slag removal
Excessive turbulence
Improper pouring practices
Oxidation of molten metal
Dirty ladles
Contaminated charge materials
Good foundry practice should include:
Careful slag removal
Clean melting and pouring equipment
Appropriate filtration where required
Controlled molten metal transfer
Reduced turbulence during pouring
Proper charge material management
Ceramic filters may also be incorporated into the gating system for applications where melt cleanliness is particularly important.
A cold shut occurs when two streams of molten metal meet but fail to fuse completely.
The result may look like a seam or line on the casting surface.
Cold shuts can occur because of:
Low pouring temperature
Slow filling
Thin casting sections
Poor gating design
Excessive heat loss
Long metal flow distance
Cold shuts may weaken the casting locally and can become potential leakage or crack-initiation points.
Possible solutions include:
Maintaining an appropriate pouring temperature
Improving gating system design
Reducing unnecessary flow distance
Improving mold filling speed
Avoiding unnecessarily thin sections
Controlling mold temperature where appropriate
The objective is to ensure molten metal remains sufficiently fluid until the mold cavity is completely filled.
A misrun occurs when molten metal solidifies before the entire mold cavity has been filled.
This may result in:
Missing corners
Incomplete flange edges
Unfilled ribs
Incomplete internal sections
Irregular outer surfaces
Common causes include:
Insufficient pouring temperature
Poor metal fluidity
Slow pouring
Thin wall design
Restricted gating systems
Excessive heat loss
Foundries can reduce misruns by:
Adjusting pouring parameters
Optimizing gate dimensions
Improving runner layout
Reviewing minimum wall thickness
Improving mold filling efficiency
Casting simulation can be useful for components with complicated flow paths.
Cracks are among the most serious casting defects because they directly affect structural reliability.
Hot tears develop while the casting is still solidifying and contracting.
When certain sections cannot contract freely, internal stresses can exceed the strength of the partially solidified metal.
Typical causes include:
Sharp corners
Sudden thickness changes
Poor casting geometry
Excessive mold restraint
Improper solidification
High residual stress
Use proper fillet radii and avoid sharp internal corners whenever design requirements permit.
Large changes in cross-section can generate uneven cooling and thermal stress.
The mold should allow the casting to contract appropriately during cooling.
Balanced cooling helps reduce excessive thermal gradients.
Pump and valve castings often require precise alignment between flanges, bores, bolt holes, sealing surfaces, and internal passages.
Dimensional errors can increase machining cost or make the casting unusable.
These may include:
Incorrect flange dimensions
Distorted bodies
Misaligned ports
Incorrect wall thickness
Core shift
Uneven machining allowance
Dimensional variation may be related to:
Pattern wear
Improper shrinkage allowance
Core movement
Mold deformation
Incorrect mold assembly
Casting distortion during cooling
Foundries should control:
Pattern dimensions
Core location
Mold assembly
Shrinkage allowance
Process repeatability
Cooling conditions
Critical dimensions should also be included in the casting inspection plan.
Core shift is particularly important for pump casings and valve bodies because cores are frequently used to form internal fluid passages.
If a core moves during mold assembly or pouring, the internal cavity may no longer match the drawing.
Core shift can cause:
Uneven wall thickness
Restricted flow passages
Excessively thin pressure-bearing walls
Machining difficulties
Component imbalance
The foundry should ensure:
Accurate core boxes
Reliable core prints
Proper core positioning
Adequate core strength
Secure mold assembly
Appropriate chaplets where permitted
Core dimensions and location should be checked carefully for complex castings.
Casting surfaces may sometimes become excessively rough or contain sand strongly bonded to the metal.
While certain roughness is normal for sand castings, excessive surface defects can create problems for both appearance and subsequent processing.
These include:
Incorrect sand properties
Excessive pouring temperature
Poor mold coatings
Metal penetration into sand
Inadequate mold compaction
Surface quality can be improved through:
Suitable refractory coatings
Proper sand grain selection
Controlled pouring temperatures
Consistent molding procedures
Appropriate mold hardness
Surface finishing such as shot blasting can then be used after casting.
Pump and valve castings can distort during solidification, cooling, heat treatment, or handling.
Large valve bodies and pump housings are particularly sensitive because of their complex geometry.
Warpage may result from:
Uneven wall thickness
Uneven cooling
Poor casting support
Residual stress
Improper heat treatment
Premature shakeout
Possible solutions include:
Optimizing structural design
Maintaining balanced wall thickness
Controlling cooling rate
Using appropriate heat treatment
Allowing adequate cooling before shakeout
Dimensional inspection should be conducted before critical machining operations.
Individual defects require specific solutions, but reliable casting quality ultimately depends on controlling the complete manufacturing process.
Manufacturability should be reviewed before the pattern or tooling is finalized.
Important factors include:
Wall thickness
Fillet radius
Machining allowance
Draft angle
Parting line
Core structure
Feeding requirements
Expected shrinkage
Early engineering cooperation between the casting supplier and buyer can prevent many production problems.
Pump and valve components may be produced from materials such as:
Gray cast iron
Ductile iron
Carbon steel
Low-alloy steel
Stainless steel
Heat-resistant alloys
Corrosion-resistant alloys
The material must match the actual operating conditions, including:
Fluid type
Temperature
Pressure
Corrosiveness
Abrasion
Mechanical loading
Material selection should be based on the engineering specification rather than simply choosing the lowest-cost alloy.
Chemical composition influences:
Strength
Hardness
Corrosion resistance
Castability
Weldability
Machinability
Foundries should maintain proper material identification and melting control.
Chemical analysis can be performed to confirm that the melt meets the required material specification.
A well-designed gating system helps control:
Filling speed
Metal turbulence
Oxidation
Temperature loss
Inclusion formation
Meanwhile, properly positioned risers help compensate for solidification shrinkage.
For complicated pump and valve castings, computer simulation may help identify:
Hot spots
Shrinkage-prone areas
Incomplete filling risks
Turbulent flow areas
Improper feeding zones
Stable molding conditions are essential for repeatable casting quality.
Key parameters can include:
Sand moisture
Permeability
Strength
Compactability
Core curing
Coating thickness
For components with complicated internal waterways, core quality deserves particular attention.
Stable melting and pouring practices help prevent many defects simultaneously.
Important controls include:
Melt temperature
Pouring temperature
Pouring speed
Slag removal
Ladle cleanliness
Holding time
Alloy treatment
Consistent process records are especially useful for repeat production orders.
Even with strong process control, inspection remains necessary to verify casting quality.
Different inspection methods may be selected depending on the component, material, drawing requirements, and service conditions.
Visual inspection can identify:
Surface cracks
Misruns
Cold shuts
Rough areas
Sand adhesion
Obvious dimensional problems
It is usually one of the first inspection steps.
Dimensions may be checked using conventional measuring tools, gauges, templates, coordinate measuring systems, or other suitable equipment.
Important dimensions often include:
Flange thickness
Bore diameter
Port location
Center distance
Machining allowance
Overall dimensions
Chemical analysis helps confirm that the casting material complies with the specified grade.
Depending on the specification, mechanical properties may be verified through tests such as:
Tensile testing
Hardness testing
Impact testing
The exact testing requirements depend on the material and applicable specification.
Magnetic particle inspection can be used on suitable ferromagnetic materials to detect surface and near-surface discontinuities.
Liquid penetrant testing can help detect surface-breaking defects in suitable materials, including many stainless-steel castings.
Ultrasonic testing may be used to identify certain internal discontinuities in critical areas.
Radiographic inspection can provide information about internal defects such as:
Porosity
Shrinkage cavities
Inclusions
It is often reserved for castings or areas where internal quality requirements are particularly important.
For pump and valve bodies, pressure testing can be one of the most important final verification steps.
Depending on the product and specification, hydrostatic or other appropriate pressure testing may be used to confirm the integrity of the pressure-containing casting.
Industrial buyers should not evaluate a casting supplier only by looking at the external surface of a sample.
For pump and valve castings, the following issues deserve particular attention.
Ask how the foundry controls porosity, shrinkage, inclusions, and other defects that could cause leakage.
Material identification and production records become increasingly important for industrial and repeat orders.
Complex pump volutes and valve flow paths rely heavily on core accuracy.
A casting can pass visual inspection and still create major problems during machining if dimensions or allowances vary substantially.
A good first sample does not automatically guarantee stable mass production.
Buyers should evaluate whether the supplier uses documented controls for:
Patterns
Molding
Melting
Pouring
Heat treatment
Inspection
The required inspection level should be defined clearly during quotation.
Critical applications may require additional dimensional, material, non-destructive, or pressure testing.
Providing complete technical information helps the foundry identify potential casting risks before production begins.
A typical RFQ should include:
2D drawings
3D models where available
Material grade
Unit weight
Estimated annual quantity
Required casting process
Machining requirements
Critical dimensions and tolerances
Surface finish requirements
Heat treatment requirements
Pressure requirements
Inspection requirements
Applicable standards
Special marking or traceability requirements
If the part operates under unusual temperature, pressure, corrosion, or abrasion conditions, this information should also be shared with the casting manufacturer.
Casting quality depends heavily on process engineering and production discipline.
When evaluating a pump and valve casting manufacturer, buyers should consider more than price.
Look for a supplier that can support the complete production process, including:
Drawing and manufacturability review
Pattern and tooling development
Material control
Molding and core making
Melting and pouring
Heat treatment
Shot blasting and cleaning
Machining
Inspection
Packaging and shipment
For custom projects, engineering communication is particularly important.
An experienced supplier should be able to identify potential risks such as difficult feeding areas, thin sections, large thickness transitions, machining allowance issues, and complex core structures before mass production begins.
There is no single defect that occurs in every casting. Shrinkage porosity, gas porosity, inclusions, dimensional deviation, and core-related defects are among the common problems found in complex industrial castings. The actual risk depends on the alloy, component geometry, casting process, and production conditions.
Porosity can originate from trapped gas or solidification shrinkage. Potential causes include improper feeding, excessive gas generation, poor venting, turbulent pouring, or unsuitable process parameters.
Yes. If interconnected porosity exists through a pressure-containing wall or becomes exposed during machining, it may create a leakage path. This is one reason why process control and appropriate pressure testing are important for valve and pump bodies.
Cracking can result from constrained solidification, sharp geometry, uneven cooling, excessive residual stress, or unsuitable heat treatment. Proper casting design and controlled production can reduce these risks.
Depending on the material and quality requirements, methods such as ultrasonic testing or radiographic testing may be used to evaluate internal discontinuities. The appropriate inspection method should be determined according to the component specification.
Cores form many of the internal fluid passages. Core movement can change wall thickness or flow geometry and may create thin pressure-bearing sections. Proper core design and positioning are therefore essential for complex pump housings.
Not necessarily. Inspection requirements should correspond to the application, material, component criticality, drawing, and relevant standards. Many commercial castings use a combination of visual, dimensional, material, and pressure inspections, while more critical components may require additional non-destructive testing.
The quality of pump and valve castings depends on far more than producing the correct external shape. Shrinkage, porosity, inclusions, cold shuts, cracks, core shift, dimensional deviation, and distortion can all affect pressure integrity, machining performance, service life, and final equipment reliability.
The most effective way to reduce these defects is through systematic process control—from casting design and material selection to gating design, molding, melting, pouring, heat treatment, machining, and final inspection.
For B2B buyers, working with a casting manufacturer that understands both foundry production and the functional requirements of pumps and valves can significantly reduce quality risks during sample development and batch production. Providing complete drawings, materials, tolerances, testing requirements, and operating conditions at the RFQ stage also allows potential manufacturing problems to be identified earlier, helping achieve more consistent and reliable cast components.
