CNC machining has significantly changed the way automotive components are designed, developed and manufactured. By combining computer-controlled equipment with precision cutting tools, manufacturers can produce metal and plastic parts with complex geometries, consistent dimensions and reliable surface quality.
In the automotive industry, CNC machining is widely used for prototypes, performance parts, tooling components, replacement parts and low- to medium-volume production. It is particularly suitable for automotive projects involving multiple part varieties, frequent design changes, tight tolerances or specialized material requirements.
From engine housings and transmission shafts to suspension brackets and electronic enclosures, CNC machining provides the accuracy and flexibility required by modern vehicle manufacturers, automotive engineering companies and parts suppliers.
This guide explains the main advantages of CNC machining for automotive parts, common applications, suitable materials and the key factors to consider when selecting an automotive machining supplier.
CNC machining is a subtractive manufacturing process in which computer-controlled equipment removes material from a solid workpiece to create the required component.
A digital drawing or three-dimensional model is converted into machining instructions. The CNC machine then follows these programmed instructions to perform operations such as:
Milling
Turning
Drilling
Boring
Tapping
Reaming
Grinding
Thread machining
Surface profiling
The workpiece may be made from aluminum, steel, stainless steel, titanium, magnesium, copper alloy, engineering plastic or another machinable material.
Because CNC equipment follows a controlled program, the process can produce automotive components with repeatable dimensions. It is suitable for both simple components and complex parts containing pockets, holes, threads, curved surfaces and multiple mounting features.
Automotive components must meet requirements related to dimensional accuracy, mechanical strength, assembly compatibility, durability and production efficiency. CNC machining provides several important advantages.
Many automotive components must fit precisely into engines, transmissions, suspension systems, braking assemblies and electronic systems.
Even a small dimensional deviation can lead to:
Poor assembly
Excessive vibration
Uneven wear
Fluid leakage
Noise
Reduced mechanical efficiency
Premature component failure
CNC machining can control critical dimensions such as hole diameter, hole position, concentricity, flatness, parallelism and thread size according to the technical drawing.
This makes the process suitable for parts with tight tolerances and multiple mating surfaces.
Once the machining program, cutting parameters and fixture system have been validated, CNC equipment can produce the same part repeatedly with minimal dimensional variation.
This consistency is especially important for automotive manufacturers that require:
Prototype batches
Validation components
Small production runs
Repeat orders
Replacement parts
Customized vehicle components
Stable part dimensions help reduce assembly problems and simplify downstream quality inspection.
CNC machines can perform multiple operations with limited manual intervention. Modern machining centers may complete milling, drilling, tapping and contour cutting within a single setup.
Automated tool changing, optimized toolpaths and multi-axis machining can help reduce cycle time and improve manufacturing efficiency.
Production speed depends on the material, geometry, tolerance and quantity, but CNC machining generally provides a reliable solution for time-sensitive automotive development projects.
Modern vehicles contain components with increasingly complex shapes. These parts may include:
Deep cavities
Thin walls
Angled holes
Curved surfaces
Internal channels
Precise mounting positions
Multiple interfaces
Three-axis, four-axis and five-axis CNC machining can produce these complex features more accurately than many conventional manual processes.
Five-axis machining is particularly useful for automotive components that require machining from several directions without repeated repositioning.
CNC machining does not normally require expensive dedicated molds. This gives automotive engineers more flexibility to modify dimensions, change hole positions or revise the overall design.
It is suitable for:
New vehicle development
Functional prototypes
Motorsport components
Customized vehicles
Classic car replacement parts
Electric vehicle components
Design verification
Low-volume specialty production
When a design changes, the machining program can often be adjusted without creating new production tooling.
CNC machining can optimize cutting paths and raw material usage. Accurate programming helps reduce unnecessary machining and limits the risk of scrapping expensive workpieces.
Material waste can also be reduced through:
Appropriate stock-size selection
Nesting strategies
Process simulation
Fixture optimization
First-piece verification
Controlled finishing allowances
This is particularly valuable when machining aluminum billets, titanium alloys or other relatively expensive materials.
CNC machining can process many metals and engineering plastics used in automotive manufacturing.
Material flexibility allows engineers to select the most appropriate combination of:
Weight
Strength
Corrosion resistance
Heat resistance
Wear resistance
Electrical conductivity
Production cost
CNC machining is used throughout vehicle powertrain, chassis, braking, cooling, electrical and interior systems.
Engine parts often contain precise bores, mounting surfaces, fluid channels and threaded features.
CNC machining can be used to produce or finish:
Cylinder bores
Bearing seats
Threaded holes
Mounting faces
Cooling channels
Oil passages
Dimensional accuracy is important for piston movement, sealing performance and engine assembly.
Cylinder heads contain complex features such as intake and exhaust ports, valve seats, spark plug holes and mounting surfaces.
Multi-axis CNC machining can help produce these features while maintaining their positional relationships.
Automotive pistons operate under high temperature, pressure and repeated mechanical loads.
CNC turning and milling may be used to machine:
Piston crowns
Ring grooves
Pin bores
Skirt profiles
Weight-reduction features
Crankshafts and camshafts require accurate journals, lobes, bearing surfaces and connection features.
CNC turning, milling and grinding can be used to achieve the required geometry and surface condition.
Aluminum engine housings, timing covers and valve covers may require accurate sealing faces, mounting holes and internal cavities.
CNC machining is often used for prototypes, performance components and low-volume production.
Transmission systems rely on accurately machined shafts, housings, gears and coupling components.
CNC milling can produce:
Bearing seats
Shaft openings
Mounting faces
Fluid channels
Threaded holes
Internal cavities
The alignment of these features can affect transmission performance and service life.
CNC turning is used for input shafts, output shafts and other rotational components.
These parts may require accurate diameters, grooves, splines, threads and bearing surfaces.
Gear blanks and selected gear features may be produced or finished through CNC machining. Additional processes such as hobbing, shaping, grinding or heat treatment may also be required.
CNC turning, milling and grinding can be used for clutch hubs, pressure plate components, flywheels and related parts.
Flatness, concentricity and surface condition are important for smooth operation.
Chassis and suspension parts must withstand road vibration, mechanical impact and repeated loading.
Control arms connect the wheel assembly to the vehicle structure. They may include complex contours, weight-reduction pockets and accurately positioned mounting holes.
CNC milling can be used for prototype control arms, performance vehicles and specialized suspension systems.
Steering knuckles connect wheel hubs, steering components and suspension systems.
Critical machining features may include:
Bearing bores
Ball joint mounting points
Brake caliper mounting holes
Sensor locations
Steering arm features
These areas require accurate positional control.
Shock absorber and strut mounts require precise mounting holes and mating surfaces to maintain correct suspension geometry.
Wheel hubs may be turned, drilled and milled to produce bearing seats, bolt patterns and mounting interfaces.
Custom brackets are frequently CNC-machined for prototype vehicles, motorsport applications and modified suspension systems.
Brake parts require reliable dimensions, heat resistance and mechanical strength.
CNC turning and drilling may be used to produce:
Disc profiles
Mounting holes
Ventilation features
Hub interfaces
Surface finishing features
Final braking surfaces may require additional grinding or balancing.
Brake drums require controlled diameter, roundness and surface finish.
CNC turning can help maintain accurate braking surfaces and mounting faces.
CNC milling is widely used for high-performance and customized brake calipers.
Machining may include:
Piston bores
Hydraulic channels
Bolt holes
Mounting points
Weight-reduction pockets
External contours
Internal fluid passages and sealing surfaces require careful inspection.
Caliper brackets and mounting adapters must maintain accurate hole spacing and alignment to ensure correct installation.
CNC machining can also support automotive interior development and low-volume production.
Engineering plastics and aluminum may be machined to create dashboard prototypes, instrument clusters and electronic mounting structures.
CNC machining can produce housings, panels, control mounts and customized console components.
Door-panel prototypes may require accurate openings for:
Speakers
Buttons
Handles
Wiring
Trim components
Mounting clips
CNC-machined brackets, adjustment components and structural connectors may be used in customized seating systems.
CNC machining is not normally used to manufacture complete mass-production vehicle body panels, but it is valuable for tooling, prototypes and specialized structural parts.
Applications include:
Body mounting brackets
Roof-system components
Door hinge components
Battery enclosure frames
Chassis connectors
Reinforcement components
Motorsport structural parts
Welding fixtures
Assembly jigs
CNC machining may also be used to produce molds, dies and tooling for body-panel manufacturing.
CNC machining may be used to produce radiator end plates, brackets, fittings and custom cooling components.
Drilling, slotting and surface machining help control mounting dimensions and coolant flow connections.
Water pump housings may contain:
Mounting holes
Bearing seats
Internal chambers
Fluid channels
Sealing surfaces
CNC machining helps maintain the required fit and fluid-flow geometry.
Aluminum or plastic thermostat housings can be machined for prototypes and specialized vehicle applications.
Exhaust flanges require accurate port shapes, bolt patterns and sealing surfaces.
CNC milling is commonly used for custom exhaust systems and performance vehicles.
Selected manifold components, flanges and connection surfaces may be CNC-machined before welding or assembly.
The growth of electric vehicles has created new requirements for precision-machined automotive components.
Common examples include:
Battery enclosure parts
Battery cooling plates
Motor housings
Inverter housings
Charger housings
Busbar supports
Electronic control unit enclosures
Thermal-management components
Sensor brackets
Lightweight structural connectors
Electric vehicle components often require a combination of precise dimensions, heat-management features and lightweight construction.
CNC machining is also widely used to produce tooling for automotive production.
Examples include:
Assembly fixtures
Welding fixtures
Inspection gauges
Positioning blocks
Robotic grippers
Mold inserts
Die components
Checking fixtures
Production jigs
These tools help maintain consistency during vehicle and component assembly.
The selected material must meet the mechanical, thermal, corrosion and cost requirements of the final component.
Aluminum is one of the most widely machined automotive materials.
Lightweight
Good corrosion resistance
Good thermal conductivity
Relatively easy to machine
Suitable strength-to-weight ratio
Compatible with anodizing and other finishes
Engine housings
Cylinder heads
Transmission housings
Battery enclosures
Motor housings
Suspension components
Heat sinks
Electronic enclosures
Interior brackets
Common machinable aluminum grades include 6061, 6082, 7075 and other project-specific alloys.
Steel provides high strength, hardness and wear resistance.
High mechanical strength
Good fatigue resistance
Good wear resistance
Suitable for heat treatment
Broad grade availability
Shafts
Gears
Control arms
Steering parts
Brake components
Chassis connectors
Fasteners
Suspension components
Different grades require different cutting tools, machining parameters and heat-treatment processes.
Stainless steel is selected where corrosion resistance and mechanical durability are important.
Corrosion resistance
Heat resistance
Good mechanical strength
Durable surface
Suitable for demanding environments
Exhaust components
Fuel system components
Fittings
Fasteners
Sensor housings
Fluid-handling parts
Decorative components
Some stainless steel grades are more difficult to machine and may require optimized tooling and cooling.
Copper alloys provide excellent electrical and thermal conductivity.
High electrical conductivity
High thermal conductivity
Good corrosion resistance
Suitable for electrical systems
Available in multiple alloy grades
Electrical connectors
Terminals
Busbars
Cooling components
Heat-transfer parts
Charging-system components
Copper materials may require careful chip control and surface protection during machining.
Titanium is used in performance vehicles and specialized automotive applications.
High strength-to-weight ratio
Low density compared with steel
Excellent corrosion resistance
Good high-temperature performance
High fatigue strength
Performance engine parts
Motorsport components
Suspension components
Exhaust components
High-strength fasteners
Lightweight structural parts
Titanium is more difficult to machine than aluminum because cutting heat can concentrate around the tool edge.
Magnesium is valued for its very low density.
Extremely lightweight
Good strength-to-weight ratio
Good machinability
Suitable for weight-sensitive designs
Dashboard frames
Seat frames
Transmission housings
Electronic housings
Lightweight brackets
Magnesium machining requires appropriate safety controls because chips and dust can be combustible.
Engineering plastics are suitable for lightweight, insulating and low-friction automotive parts.
ABS
Nylon
POM
PEEK
PTFE
Polycarbonate
Acrylic
Dashboard components
Control housings
Electrical insulation parts
Bushings
Guides
Clips
Interior prototypes
Sensor mounts
Plastic materials may deform under heat or clamping pressure, so machining conditions must be controlled carefully.
Carbon fiber composites are used in high-performance, racing and lightweight vehicle applications.
Very low weight
High stiffness
High strength
Good fatigue resistance
Premium appearance
Body panels
Chassis components
Interior trim
Aerodynamic components
Structural reinforcements
Machining carbon fiber requires special tools, dust extraction and edge-damage control.
Rubber is generally not machined in the same way as metal, but CNC cutting and specialized machining methods may be used for selected elastomer parts.
Seals
Gaskets
Vibration isolators
Protective pads
Custom rubber components
Material hardness and elasticity affect the machining method.
Technical ceramics can be used for high-temperature, wear-resistant and electrically insulating automotive components.
High-temperature resistance
High hardness
Excellent wear resistance
Corrosion resistance
Electrical insulation
Sensor components
Insulating parts
Selected braking components
Fuel-system components
High-temperature engine parts
Ceramic machining usually requires specialized grinding tools and processes.
Different automotive components require different machining technologies.
CNC milling is used for housings, brackets, plates, pockets, mounting surfaces and complex contours.
It is suitable for both metal and plastic parts.
CNC turning is used for round and cylindrical parts such as:
Shafts
Bushings
Pins
Sleeves
Hubs
Fittings
Threaded components
Five-axis machining can produce complex automotive components with fewer setups.
It is particularly suitable for:
Cylinder heads

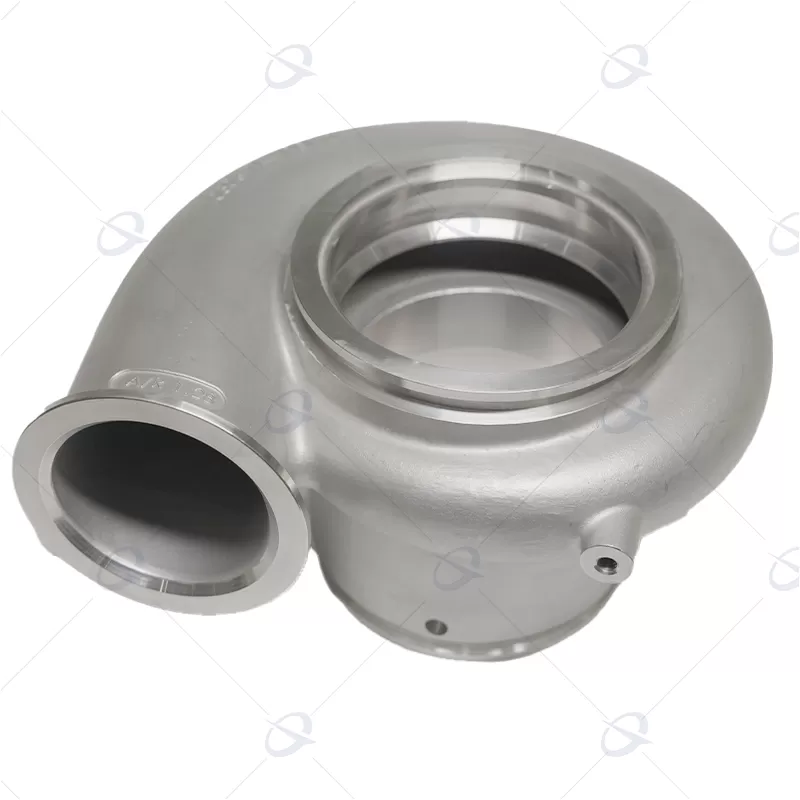

Turbocharger housings
Complex suspension parts
Motor housings
Prototype body components
Performance brake calipers
Drilling and tapping are used to create accurate mounting holes, threaded holes and fluid passages.
Grinding is used when automotive parts require high dimensional accuracy or a fine surface finish.
Typical applications include:
Shafts
Bearing surfaces
Gears
Brake components
Engine components
EDM can produce narrow slots, sharp internal corners and complex details in hard conductive materials.
It is often used for dies, molds, tooling and specialized precision components.
Surface treatment can improve corrosion resistance, wear resistance, appearance and service life.
Common finishing options include:
Anodizing
Hard anodizing
Passivation
Powder coating
Painting
Electroplating
Electroless nickel plating
Black oxide
Polishing
Bead blasting
Heat treatment
Laser marking
The correct finish depends on the material and operating environment.
Coating thickness should be considered during dimensional planning, especially for holes, sealing surfaces and mating features.
Reliable automotive components require more than accurate machining. A structured quality-control process should cover raw materials, in-process dimensions and final inspection.
Important quality controls may include:
Drawing review
Material verification
First-piece inspection
In-process inspection
Final dimensional inspection
Surface roughness measurement
Thread inspection
Visual inspection
Material certificates
Heat-treatment records
Surface-treatment records
Batch traceability
Inspection reports
Common inspection equipment includes:
Coordinate measuring machines
Micrometers
Calipers
Height gauges
Bore gauges
Thread gauges
Surface roughness testers
Optical measurement systems
Profile projectors
Buyers should define inspection and documentation requirements before production begins.
Selecting the right supplier can affect component quality, project lead time and total procurement cost.
Choose a supplier that understands automotive component requirements.
Relevant experience may include:
Engine components
Transmission parts
Suspension parts
Brake components
Electric vehicle parts
Automotive prototypes
Performance components
Manufacturing fixtures
Experience with similar geometries and materials can reduce production risks.
Evaluate whether the supplier has suitable equipment for the component.
Useful capabilities may include:
Three-axis CNC milling
Four-axis CNC machining
Five-axis CNC machining
CNC turning
Mill-turn machining
Precision grinding
EDM
Coordinate measuring equipment
The machine size, spindle performance and positioning accuracy should match the project requirements.
The supplier should understand the characteristics of the selected material.
Ask about its experience machining:
Aluminum alloys
Carbon steel
Alloy steel
Stainless steel
Titanium
Magnesium
Copper alloys
Engineering plastics
Composite materials
Material knowledge affects cutting parameters, tool selection, deformation control and surface quality.
A supplier should have a documented quality-control process.
Evaluate its ability to provide:
Incoming material inspection
In-process inspection
Final inspection
CMM reports
First article inspection
Material certificates
Surface-treatment certificates
Batch traceability
Relevant quality-management certifications may also be considered according to project requirements.
Automotive projects may begin with a small prototype batch and later move into repeat production.
A suitable supplier should be able to support:
One-off prototypes
Small-batch testing
Engineering validation batches
Low-volume production
Repeat orders
Scheduled deliveries
Production capacity should match both current and future demand.
A capable machining supplier can review the drawing and identify potential manufacturing problems.
Engineering support may include:
Design-for-manufacturing review
Tolerance recommendations
Material suggestions
Fixture planning
Surface-treatment allowance
Cost-reduction advice
Process-risk identification
Any design change should be approved by the customer before production.
Automotive parts frequently require anodizing, heat treatment, plating, painting or powder coating.
A supplier that can coordinate these services may simplify procurement and reduce logistics work.
Buyers should confirm how outsourced finishing processes are inspected and controlled.
The quoted lead time should account for:
Raw material procurement
Programming
Fixture preparation
Machining
Inspection
Surface finishing
Final quality checks
Packaging
Transportation
A realistic production schedule is more valuable than an extremely short lead time that cannot be maintained.
Clear communication is essential for custom automotive machining projects.
The supplier should respond promptly to questions about:
Drawings
Tolerances
Material availability
Production status
Inspection results
Design changes
Delivery arrangements
Providing complete technical information helps the supplier prepare a more accurate quotation.
The inquiry should ideally include:
Two-dimensional drawing
Three-dimensional CAD file
Material grade
Required quantity
Dimensional tolerances
Geometric tolerances
Surface roughness
Heat-treatment requirements
Surface-finishing requirements
Inspection requirements
Documentation requirements
Target delivery date
Packaging requirements
Delivery destination
Critical features should be clearly identified on the drawing.
CNC machining plays an important role in modern automotive component manufacturing. It provides the precision, repeatability and design flexibility required for engine parts, transmission components, suspension systems, braking assemblies, electric vehicle parts and customized automotive applications.
The process is suitable for prototypes, small batches, specialty production and repeat manufacturing. It can also process a wide range of metals, engineering plastics and composite materials.
However, successful automotive machining depends on more than the CNC equipment itself. Material knowledge, fixture design, programming, tool control, dimensional inspection and production management all affect the final result.
When choosing an automotive CNC machining supplier, buyers should evaluate relevant project experience, equipment capability, material expertise, quality control, engineering support and delivery performance.
Providing complete drawings and technical requirements from the beginning can also help reduce quotation errors, production delays and quality risks.
Automotive CNC machining is a computer-controlled manufacturing process used to remove material from metal or plastic workpieces and produce vehicle components according to digital drawings.
It may include milling, turning, drilling, tapping, grinding and multi-axis machining.
Common CNC-machined automotive parts include engine housings, cylinder heads, transmission shafts, suspension brackets, steering knuckles, brake calipers, wheel hubs, battery enclosures, motor housings and electronic control housings.
The main advantages include high dimensional accuracy, repeatable quality, complex geometry capability, flexible design changes, broad material compatibility and suitability for prototype or low-volume production.
Common materials include aluminum, carbon steel, alloy steel, stainless steel, titanium, magnesium, copper alloys, engineering plastics and carbon fiber composites.
Yes. CNC machining is widely used for functional prototypes because it can produce parts directly from CAD models without requiring expensive molds.
It also allows engineers to test dimensions, assembly fit and material performance before production.
Yes. CNC machining is particularly suitable for small and medium batches, customized components, performance parts and projects involving frequent design changes.
Five-axis machining allows complex parts to be machined from multiple directions in fewer setups.
This can improve positional accuracy and reduce machining time for cylinder heads, brake calipers, motor housings and complex suspension parts.
Common surface treatments include anodizing, plating, passivation, powder coating, painting, polishing, bead blasting, black oxide and heat treatment.
The correct finish depends on the material and application.
Depending on the project, buyers may request material certificates, dimensional inspection reports, first article reports, heat-treatment certificates, surface-treatment certificates and production traceability records.
Evaluate the supplier’s automotive experience, CNC equipment, material expertise, quality-management system, inspection capability, engineering support, production capacity and delivery reliability.
